Side Emitting Self Adhesive LED Tape
6.0mm wide, 2.5mm thick, 12v 60LED & 4.8w per metre, max. 6m roll, separable every 50mm
12v 3000K warm white
12v 6000K cool white
2m pre-soldered input lead |
 |
|
Standard Self Adhesive 60LED Tape with 2m pre-soldered input lead
8mm wide, 60 LED 4.8w per metre, max. 6m roll, separable every 50mm
12v 2200K ultra warm white
12v 3000K warm white
12v 4000K neutral white
12v 6000K cool white (daylight)
12v Blue
12v Green
12v Red
2m pre-soldered input lead |
 |
|
Standard High Output Self Adhesive 120LED Tape with 2m
pre-soldered input lead – 10mm wide, 12v, 120LED, 9.6w per metre, max. 6m roll, separable every 50mm
12v 3000K warm white
12v 4000K neutral white
12v 6000K cool white (daylight)
2m pre-soldered input lead
Uses: Under wall units, over wall units, knee spaces, |
 |
|
Extender Lead
1.5m JB male to female extender lead, JB plug & socket,
for 12 & 24v circuits
1.0m TOP male to female extender lead, TOP plug & socket,
for 12 & 24v circuits
2.0m TOP male to female extender lead, TOP plug & socket,
for 12 & 24v circuits |
| 12v LED Drivers - for all of the above |
12v 6w, 4 way JB socket
12v 15w, 6 way JB socket
12v 30w, 6 way JB socket
12v 50w, 6 way JB socket
|
|
12v 30w, 6 way AMP socket
IP 12v 30w, 6 way AMP socket
12v 50w, 6 way AMP socket
12v 60w, 6 way AMP socket |
|
12v 100w ,6 way AMP socket
12v 150w, 6 way AMP socket |
|
|
Standard Ultra High Output Self Adhesive
60 LED Tape with 2m pre-soldered input lead
10mm wide, 60 LED, 14.4w per metre, max. 6m roll, separable
every 50mm
24v 3000K warm white
24v 6000K cool white
|
 |
| |
| Uses: As 9.6w where even more light is required – over unit lighting with a higher ceiling, underneath worktop overhangs etc |
| 24v LED Drivers - for all of the above |
24v 6w, 4 way JB socket
24v 15w, 6 way JB socket
24v 30w, 6 way JB socket
24v 50w, 6 way JB socket
24v 50wr, 6 way JB socket |
|
24v 30w, 6 way AMP socket
24v 45w, 6 way AMP socket
24v 75w, 6 way AMP socket |
|
24v 100w, 6 way AMP socket
24v 150w, 6 way AMP socket
24v 200w, 6 way AMP socket
Fig 8 flex, 0.19mm,
black/white striped, 100m drum
As above, per metre |

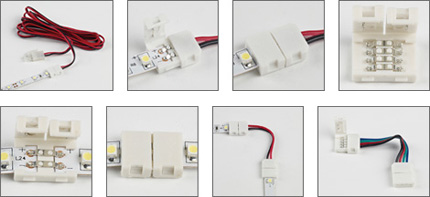

| Solderless Fast Connectors for LED Tape |
 |
|
8mm connector with
2m lead & AMP plug
8mm butt connector
8mm joining connector,
50mm link lead
10mm connector with
2m lead & AMP plug
10mm butt connector
10mm joining connector,
50mm link lead |
|
|
|
|
|
